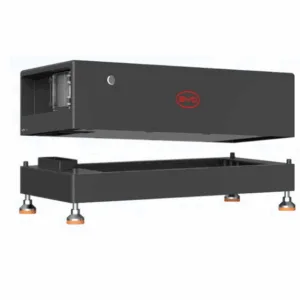

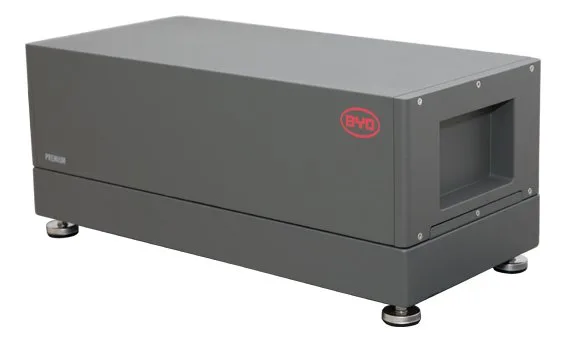

The BYD Battery-Box Premium LVS PDU + Base is the most important mechanical and electrical part of every LVS battery tower. The modules store the energy, but this dual-component set gives you the high-current distribution and structural stability you need to make a professional-grade 48V storage system. In 2026, it is still the best way to get safe, stackable, and scalable residential energy.
The Foundation of Power: High-Performance 250A Distribution
Every LVS tower—whether it’s a compact 4.0 kWh setup or a full 24.0 kWh stack—requires exactly one PDU (Power Distribution Unit) and one base. The PDU acts as the high-current interface, managing a massive 250 A continuous output current, making it perfectly suited for high-load inverters like the Victron MultiPlus-II 5000 or SMA Sunny Island.
-
Internal Plug Design: BYD’s patented internal plug connection does away with the need for messy external DC cabling between modules. The modules just stack on top of the base, and the PDU locks everything together at the top, making for a neat installation that looks like Lego.
-
Integrated Safety: The PDU housing includes internal DC protection and serves as the primary connection point for your main battery cables and the BMU (Battery Management Unit) data link.
Built for Any Environment: IP55 Outdoor Rated Base
In modern homes, space is often hard to come by. The BYD LVS PDU and Base are both rated IP55, which means they are strong enough to be used in a variety of places. This foundation keeps important electrical connections safe from dust and moisture, no matter where your energy hub is—basement, garage, or a sheltered outdoor area.
-
Heavy-Duty Stability: The base unit is engineered to support the significant weight of a full 24 kWh tower (up to 289 kg). It ensures the stack remains perfectly level and stable, which is crucial for maintaining the integrity of the internal plug connections over a 10-year lifespan.
-
Flexible Scalability: While one PDU manages a single tower of up to 6 modules, the system is designed to grow. By adding more PDU + Base sets, you can connect up to 16 towers in parallel to reach a staggering 256 kWh of total storage.
Technical Specifications (LVS PDU & Base)
| Feature | Specification Details |
| Model | BYD Battery-Box Premium LVS PDU + Base |
| Compatible Battery | BYD Premium LVS (4.0 kWh – 24.0 kWh stacks) |
| Max. Continuous Current | 250 A |
| Peak Output Current | 360 A (for 5 seconds) |
| Enclosure Rating | IP55 (Indoor and Outdoor use) |
| Components Included | 1x PDU (Top Unit), 1x Floor Base, Mounting Hardware |
| System Voltage | 51.2 V (48 V Nominal) |
| Communication | Internal connection to BMU via RJ45 |
| Combined Weight | 19 kg (PDU: 12kg / Base: 7 kg) |
| Dimensions (Base) | 650 x 298 x 245 mm |
