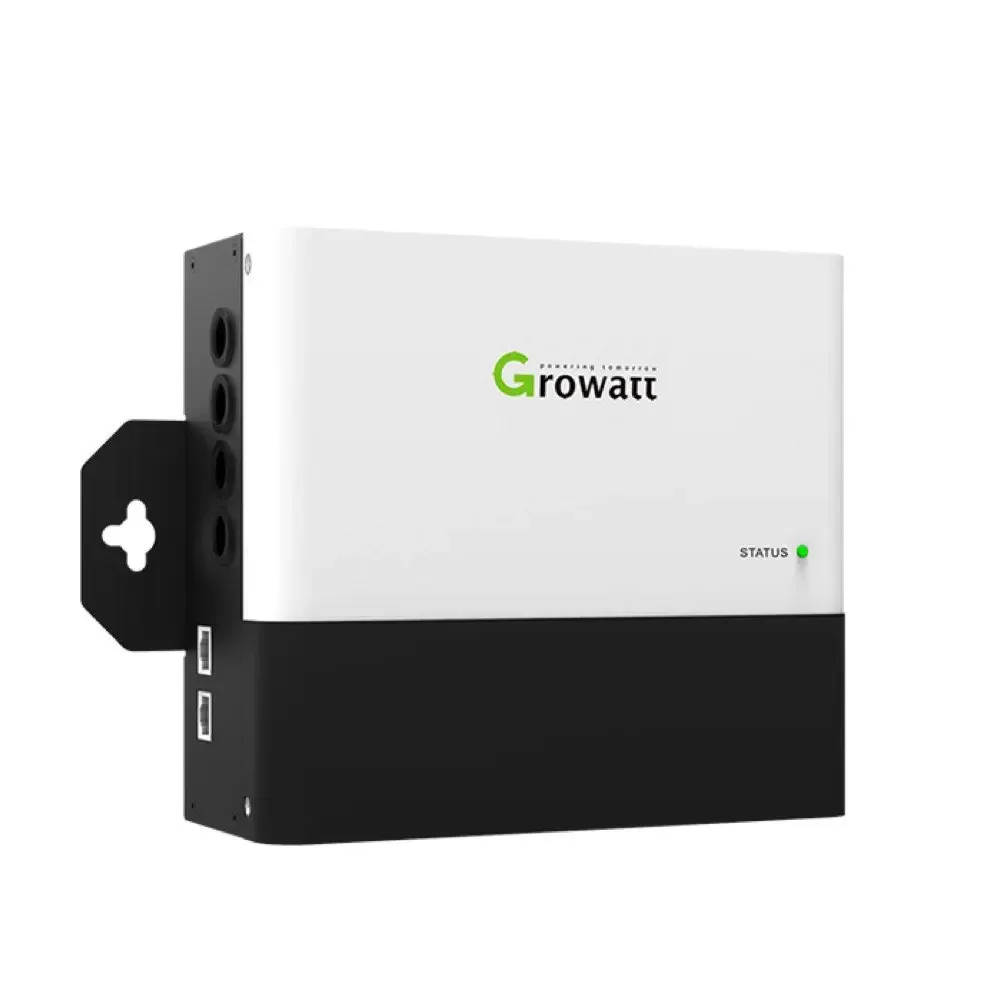

The Growatt Master Box GMB10022 is the most important parallel controller for Growatt lithium storage systems of the first generation. In 2026, this unit will be the “smart bridge” that homeowners need to double the capacity of the GBLI5001 and GBLI5010 battery modules. It makes sure that two battery packs work together perfectly by acting as a central coordinator. This stops the common “mismatched discharge” problems that happen in unmanaged parallel setups.
Intelligent Energy Balancing: Equilibrium Utilization
The biggest problem with expanding 48V lithium systems is making sure that both modules get the same amount of power. The Master Box fixes this with Independent Modbus Communication. It keeps an eye on the voltage, temperature, and State of Charge (SoC) of each battery in real time to make sure that neither unit is overworked.
-
Automatic Battery Identification: One of the standout features of the Growatt Master Box GMB10022 is its ability to automatically detect whether it is connected to a GBLI5001 or GBLI5010 module. This “plug-and-play” logic eliminates the risk of manual configuration errors during commissioning.
-
High Power Throughput: Despite its compact size, the Master Box supports a maximum charging and discharging power of up to 5000W at the inverter interface, allowing your system to handle high-draw appliances without bottlenecking.
Safety and Monitoring: The Professional Choice
Solar owners’ top priority in 2026 is how long their systems will last. The Master Box is more than just a junction; it’s a layer of protection. It has built-in LED status lights that show you right away how healthy your battery bank is, so you can fix problems quickly without needing a laptop.
-
The Master Box connects to the batteries and the Growatt storage series inverters (like the SPH and SPA series) using Modbus over an RJ45 connection. This makes a reliable data link. This closed-loop communication is important for keeping your warranty and making your LFP cells last longer.
-
The Master Box is low-profile and strong. It has an IP20 rating and weighs only 2.0 kg, so it’s perfect for mounting on walls that need to be clean. Its internal circuitry is very efficient and uses less than 0.25W, so your communication hardware won’t use up the solar energy you’ve stored.
Technical Information (GMB10022)
| Feature | Specification Details |
| Model Number | Master Box (GMB10022) |
| Compatible Batteries | Growatt GBLI5001 / GBLI5010 |
| Max. Parallel Capacity | 2 Battery Modules (Up to 10 kWh) |
| Inverter Interface Power | Max. 5000 W |
| Battery Interface Power | Max. 3000 W |
| Communication Protocol | Modbus via RJ45 (RS485) |
| Self-Consumption | < 0.25 W |
| Enclosure Rating | IP20 (Indoor Wall Mount) |
| Operating Temperature | -10°C to +45°C |
| Dimensions (L x W x H) | 267 x 180 x 81.1 mm |
| Net Weight | 2.0 kg |
