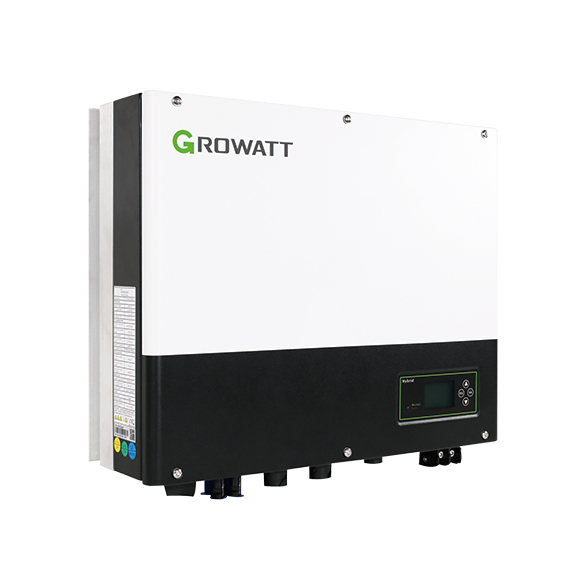

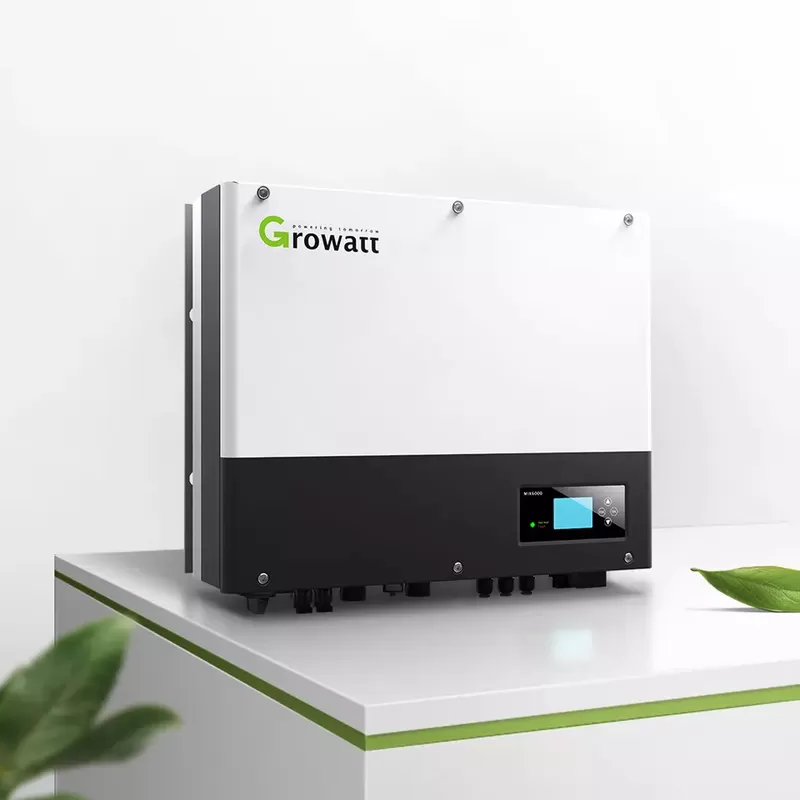

Designed to give you complete control over your energy production and storage, the Growatt SPH 5000 hybrid inverter (SPH5000TL BL-UP) is a top-tier 5kW inverter for residential solar. One of the most adaptable and future-proof options for the contemporary home, this single-phase power powerhouse is designed for both new installations and retrofitting existing PV systems.
48V Battery Technology Optimization
A popular 5kW hybrid inverter for 48V batteries, the Growatt SPH 5000 offers smooth compatibility with a variety of affordable low-voltage lithium-ion storage options.
-
Wide Compatibility: Natively compatible with premium brands such as Growatt’s Hope series, Dyness, and Pylontech (US2000C/US3000C/US5000).
-
Safe & Efficient: Features an intelligent Battery Management System (BMS) that optimizes charging cycles, ensuring your 48V battery bank maintains a long life and peak efficiency.
-
Scalable Storage: Start with a small battery bank and expand easily as your energy needs grow.
Every Home’s Smart Power
This inverter is built to handle the high demands of a modern residential household while remaining whisper-quiet and unobtrusive.
-
Silent Natural Cooling: Unlike traditional inverters that use noisy fans, the SPH 5000 relies on natural convection cooling. This makes it ideal for indoor installations where silence is a priority.
-
Seamless Backup (EPS): In the event of a grid failure, the inverter switches to backup mode in less than 0.5 seconds, keeping your essential lights and appliances running without interruption.
-
Dual MPPT Trackers: Allows for maximum energy harvesting, even on complex roofs with multiple orientations or partial shading.
Technical Excellence & Reliability
The Growatt SPH 5000 hybrid inverter is protected by a rugged IP65-rated housing, making it durable enough for outdoor placement while maintaining a compact, elegant design that fits easily into a utility room or garage.
-
Programmable Modes: Choose from multiple working modes to prioritize self-consumption, battery charging, or grid export based on your specific energy goals.
-

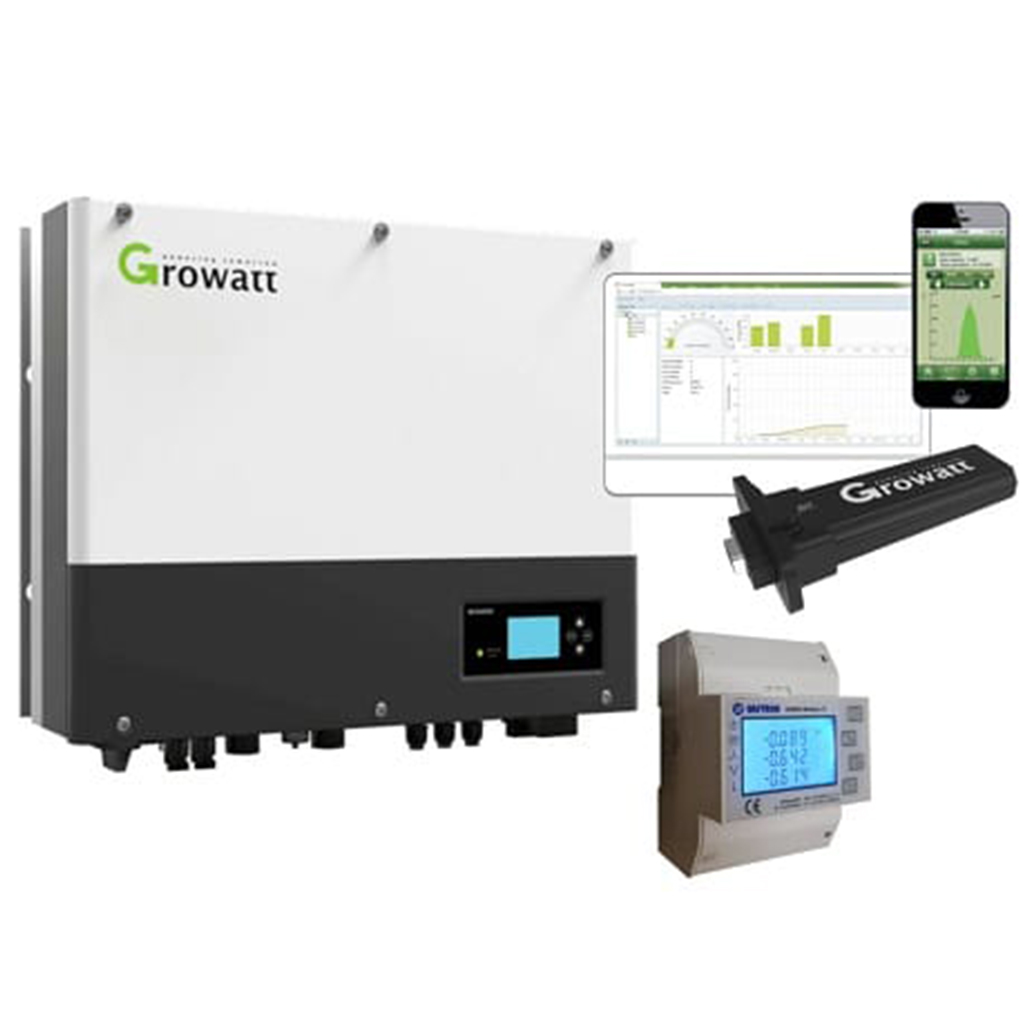

Easy Monitoring: Includes integrated OLED touch keys and a clear LCD display, with optional WiFi/LAN modules for real-time tracking via the ShinePhone app.
| Category | Technical Feature | Specification Details |
| PV Input | Max. Recommended PV Power | 8,000 W |
| Max. DC Voltage | 550 V | |
| Start Voltage | 150 V | |
| No. of MPP Trackers/Strings | 2 / 1 | |
| AC Output | Rated AC Output Power | 5,000 W |
| Max. Output Current | 22.7 A | |
| Nominal AC Voltage | 230 V (180 V–270 V) | |
| Battery | Battery Type | Lithium/Lead-acid |
| Battery Voltage Range | 42 V – 59 V | |
| Max. Charge/Discharge Power | 3,000 W | |
| Backup | EPS Switch Time | < 0.5 Seconds |
| Rated EPS Voltage / Freq | 230V / 50Hz / 60Hz | |
| General | Protection Rating | IP65 (Outdoor/Indoor) |
| Cooling Method | Natural Convection (No Fans) | |
| Weight | 27 kg |
