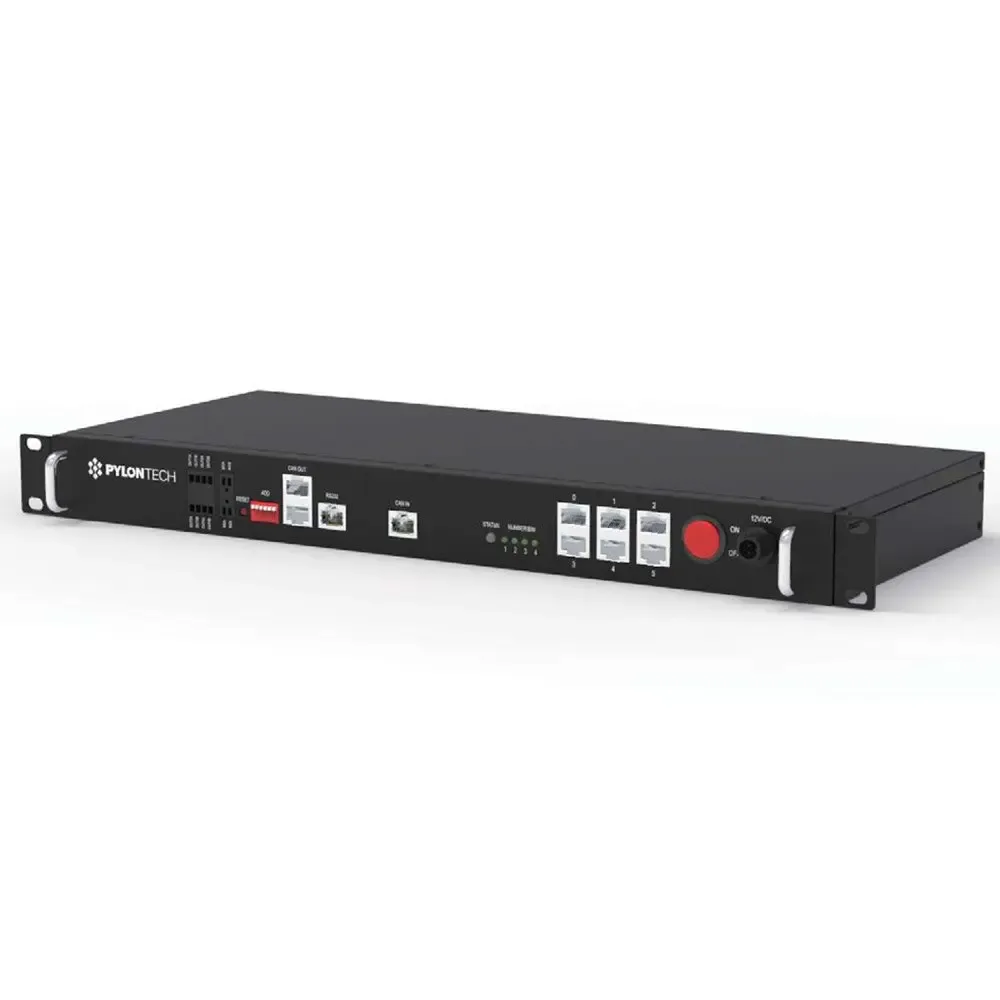

The Pylontech Low Voltage Hub (LV-Hub) is the main communication hub that connects big 48V energy storage systems. A single stack of Pylontech batteries is easy to handle, but the LV-Hub is needed when your system grows to more than 16 units (or more than one rack). It acts as the central brain that connects up to 200 batteries into one energy bank.
Scalability Without Limits: Multi-Stack Management
The Pylontech LV-Hub price in 2026 is a good deal for businesses and high-end homeowners who need to reach the “16-unit ceiling.” A Level 1 Hub can handle up to five battery groups (stacks), each with up to eight modules. You can even connect more than one hub for big projects, which can handle up to 960 kWh of power (using US5000 modules).
-
Seamless Synchronization: It provides the essential parallel communication for Pylontech US5000, US3000C, and US2000C. This ensures that the inverter sees the entire bank as one giant battery, preventing unbalanced charging or “State of Charge” (SoC) drifting between different racks.
-
Mixed Generation Support: One of the Pylontech Low Voltage Hub’s greatest strengths in 2026 is its ability to synchronize different Pylontech generations. By using C-models as masters, you can safely integrate legacy US2000/US3000 units with your newer high-capacity storage.
Professional Grade Integration: Victron Cerbo GX Compatibility
For BMS-Can and RS485 bridging, the LV-Hub is the best in the business. It turns the complicated data from many battery piles into one stream that your monitoring system can use. It is well-known for making the Pylontech Low Voltage Hub LV-Hub work with the Victron Cerbo GX, which lets you control the voltage and current across your whole storage array.
-
Ultra-Low Efficiency Loss: Despite its heavy-duty task, the hub features an ultra-low 2W system consumption. This ensures that your communication infrastructure doesn’t drain your off-grid reserves during low-production winter months.
-
15-Year Design Life: Built to outlast even the batteries it manages, the LV-Hub is a rugged, rack-mountable unit (1U) that provides a reliable 15-year operational lifespan in professional environments.
Technical Specifications (LV-Hub-A)
| Feature | Specification Details |
| Model | LV-Hub (LV-HUB-A) |
| Operating Voltage | 48 Vdc |
| Communication Interface | CAN/RS485 |
| System Consumption | 2 W |
| Max. Groups (Per Hub) | 5 Groups (Up to 8 modules per group) |
| Max. Total Batteries | Up to 96 units (Star/Daisy-Chain Topology) |
| Baud Rate | CAN: 500K / RS485: 9600-115200 |
| Dimensions (WxDxH) | 442 x 150 x 44 mm (Standard 1U Rack) |
| Protection Degree | IP20 |
| Operational Life | 15 Years |
