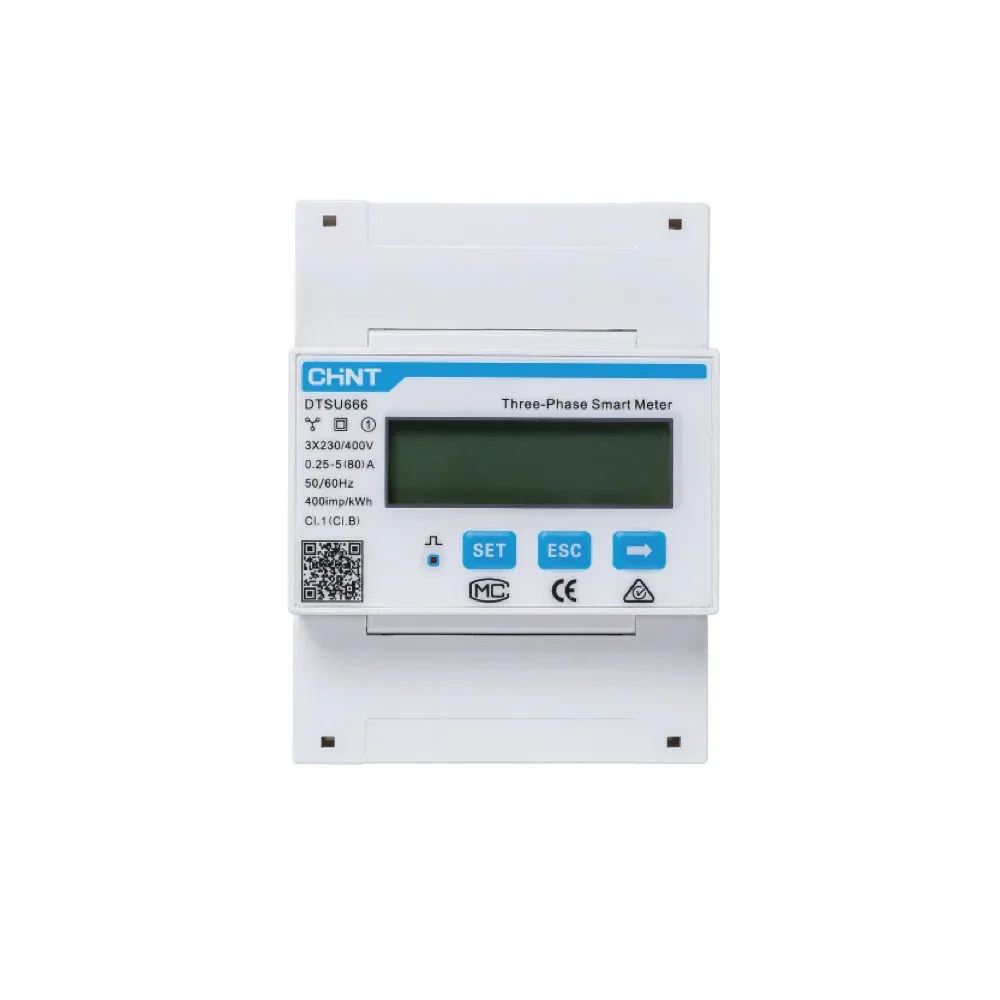

The Sungrow DTSU666 Three-Phase Smart Energy Meter is the best data engine for solar systems in 2026 that are used in businesses and high-end homes. As a Class 1 accuracy device, it connects your solar production to your actual household consumption, allowing you to use all of the energy management features in the iSolarCloud ecosystem.
Intelligent Grid Management: Dynamic Export Control
The Sungrow DTSU666 is your main tool for making sure the grid is compliant in a 2026 energy landscape with strict utility rules. It keeps an eye on all three phases at once and talks to your Sungrow inverter through a fast RS485 Modbus-RTU connection. This lets you set real-time dynamic export limits, which means you never send more power back to the grid than your local permit allows. This also means you keep as much energy as possible for your own use.
-
Full Consumption Visibility: Without this meter, your app only shows solar production. The DTSU666 unlocks “Consumption Monitoring,” allowing you to see exactly when and where your power is being used.
-
Hybrid Battery Synergy: For owners of the Sungrow SH-RT series (SH5.0RT to SH10RT), this meter is the critical trigger that tells your battery when to charge from surplus solar and when to discharge to cover heavy 3-phase loads like AC units or EV chargers.
Hardware Versatility: Direct vs. CT-Indirect Measurement
Sungrow offers the DTSU666 in two distinct configurations to match your facility’s electrical requirements:
-
Direct Measuring (Standard): Designed for standard residential and light commercial switchboards, supporting a maximum current of 80A per phase through a direct-wired connection.
-

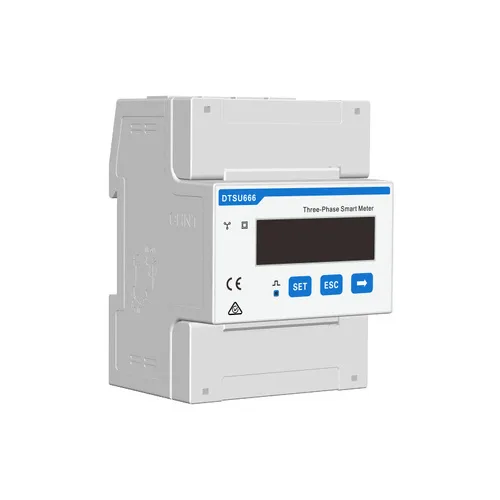

Indirect Measuring (DTSU666-20): Engineered for 2026 megawatt-scale or heavy industrial sites. This version utilizes split-core CT clamps (100A or 250A) or Rogowski coils (up to 3000A), allowing for non-invasive monitoring of massive power cables without disconnecting the main service.
Technical Specifications (DTSU666 / DTSU666-20)
| Feature | Specification Details |
| Model Number | DTSU666 (Direct) / DTSU666-20 (CT Version) |
| Nominal Voltage | 230 Vac (L-N) / 400 Vac (L-L) |
| Operating Voltage Range | 57.7/100 Vac to 265/460 Vac |
| Max. Current | 80 A (Direct) / Up to 3000 A (with Rogowski coils) |
| Accuracy Class | Class 1.0 (Active Power) |
| Communication Interface | RS485 (Baud rate 9600 bps) |
| Protocol | Modbus-RTU |
| Power Consumption | < 1.5 W |
| Dimensions (WxHxD) | 72 x 118 x 65.5 mm (4 DIN Modules) |
| Operating Temp | -30°C to +60°C |
| Protection Rating | IP20 (Indoor/Enclosure mount) |
